bass horns

We're offering extraordinary Solutions. Customized and optimized for your room.

Why?

Because every room has it's own "sound" and sonically problems.

In case of our custom-made bass horn developments, we refer on our long-term partnership with David Haigner, the CEO of Haigner Lautsprecherbau Austria. .

Look around and contact us to realize your individual dream.

Attached you'll find some of our bass solutions.



Wir bieten ihnen handgefertigte und auf ihren Raum zugeschnittene Bass Horn Lösungen weit ab der Mainstream Norm.

Warum?

Weil jeder Raum seinen eigenen Klang hat und deshalb kein Lautsprecher in Raum X, wie in Raum Y klingt.

Gerade wenn es um individuell angefertigte Bass Hörner geht ist Perfektion und Wissen gefragt. Hier setzen wir auf unseren Partner, die Firma Haigner Lautsprecherbau. David Haigner, für uns seit Jahren ein vertrauensvoller Partner, gilt gemeinhin als Koryphäe, wenn es um die Entwicklung von perfekt laufenden Hörnern geht.

Schauen sie sich um und kontaktieren sie uns. Denken Sie immer dran, Träume sind da um realisiert zu werden.



Nachfolgend ein paar Bass Lösungen aus unserem Programm

  stage 1

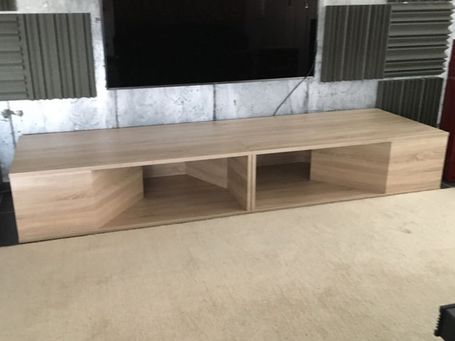

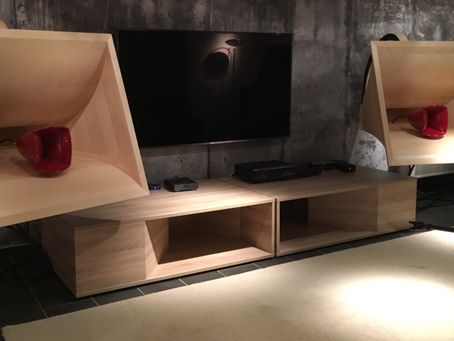

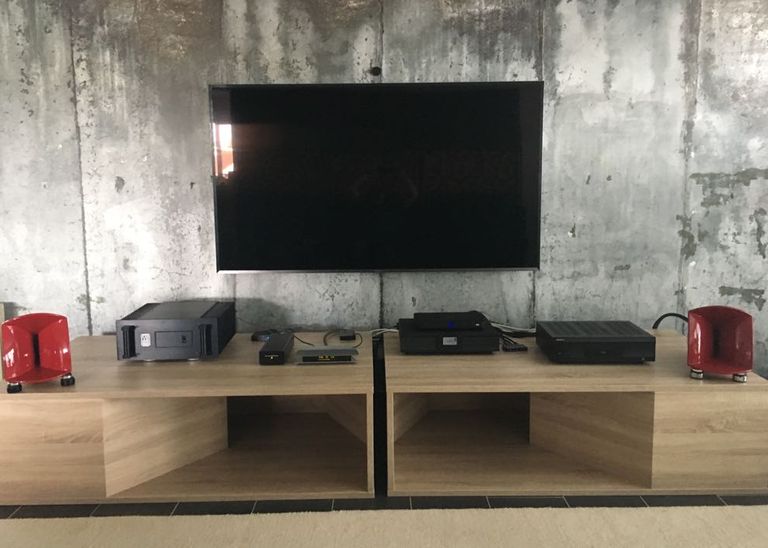

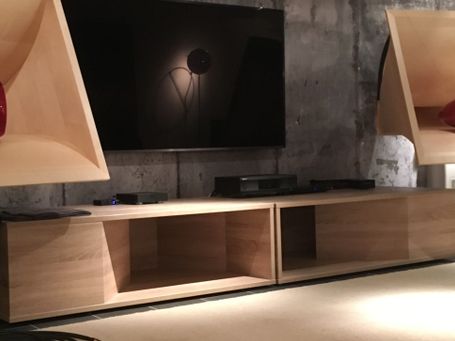

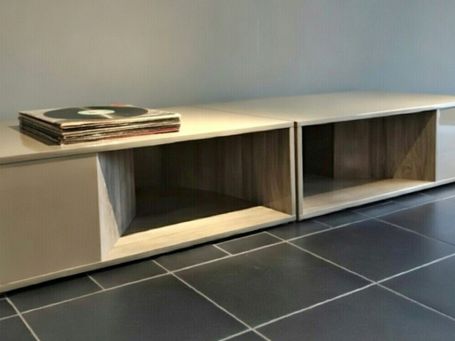

Low board bass horn

This bass horn is a real front loaded solution One of it's advantages is the design which is easy to implement in any room, because it looks like a low board and can also be used like a low board




Specifications



Low cut off                                                             36Hz

dimensions                                                            w 160 x d 60                                                                                              x h 45

horn lenght                                                            180 cm

Directivity around                                               38%

Usable Low Frequency Limit                          32Hz

Recommended Crossover Frequency         250Hz

Weight                                                                     100 Kg each unit

Pair price

8.900.-€



stage 2

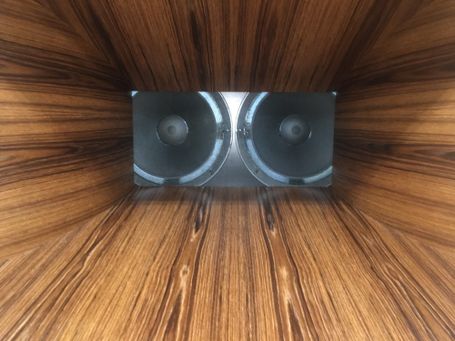

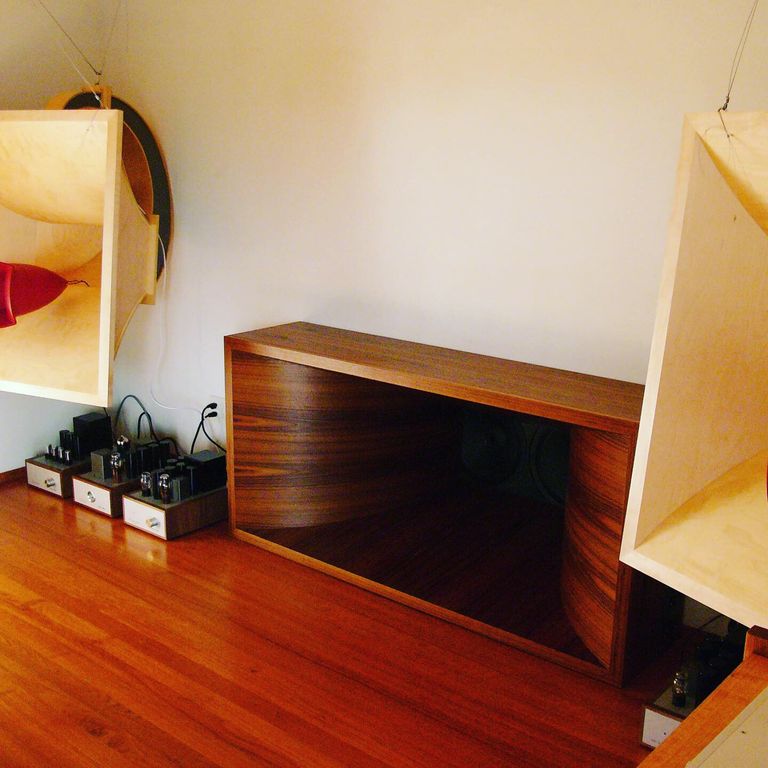

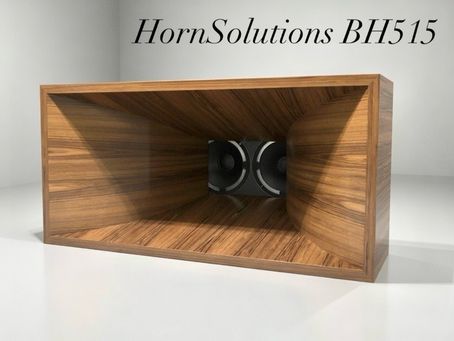

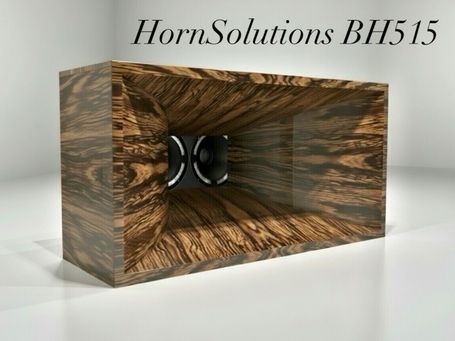

BH 515 curved mono and stereo

One of our bass horn designs. This bass horn uses two Altec 515B chassis. It's not a real frontloaded horn construction. We also use hidden reflex channels of nearly 180 cm to reach a lower frequencyresponse. The BH 515 can be used from 35 up to 1200Hz.


Specifications



Low cut off                                                         25/35Hz

Size                                                                       180 cm wide x 80 cm                                                                          high x 120cm

horn lenght                                                        65 cm

Directivity around                                           38%

Usable Low Frequency Limit                       32Hz

Recommended Crossover Frequency      250Hz



Price

12.990.-€ per Unit

stage 3

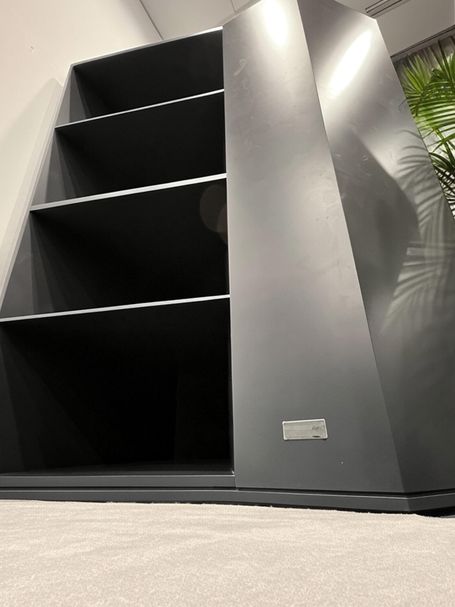

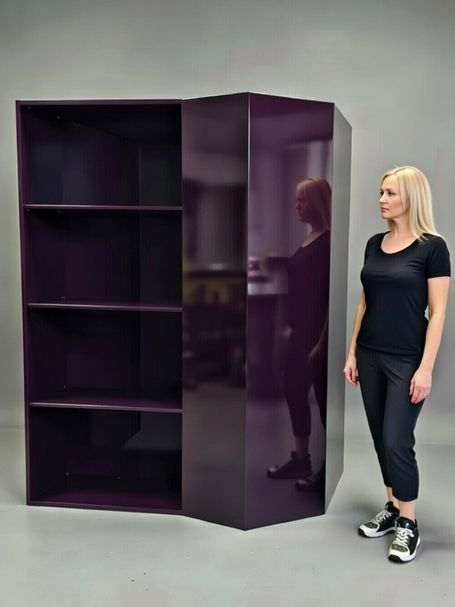

BH 606s

This bass horn uses a very hard suspension 15" driver. It's a pure frontloaded horn construction. Two of this horns are enough for rooms up to 80 square meters.


Specifications



Low cut off                                                          28Hz

Size                                                                        106 cm w x 85                                                                                           h x 120cm d

horn lenght                                                         190 cm

Directivity around                                            38%

Usable Low Frequency Limit                        25Hz

Recommended Crossover Frequency      250Hz

Weight                                                                   170 Kg

Pair price

15.990.-€

stage 4

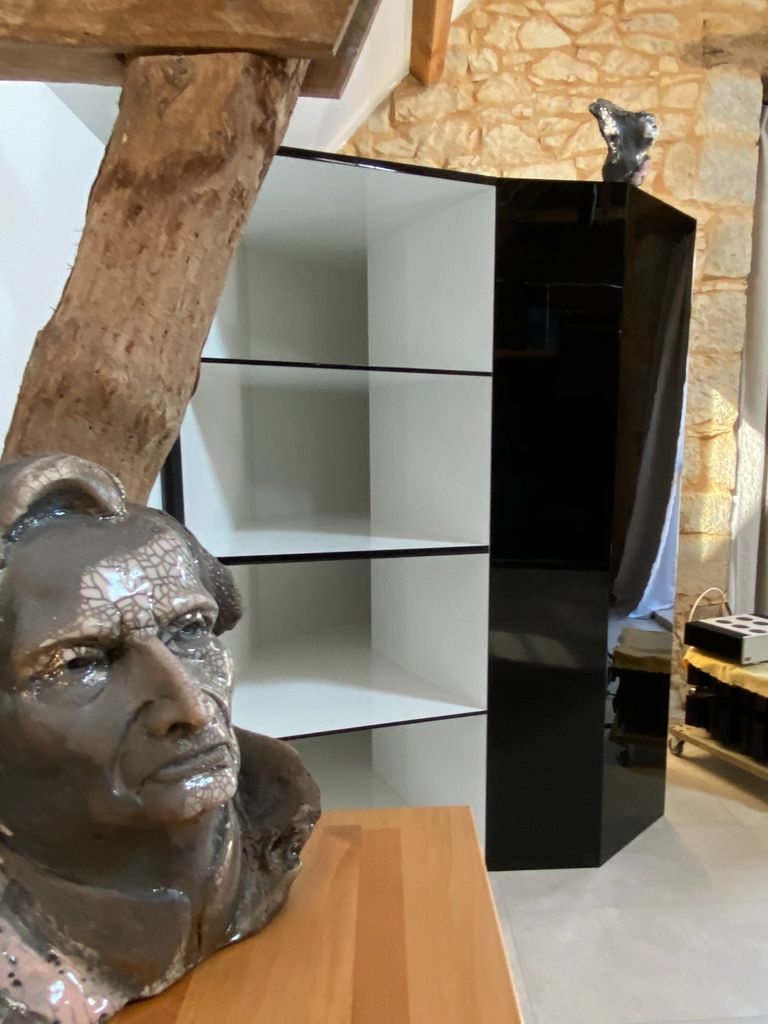

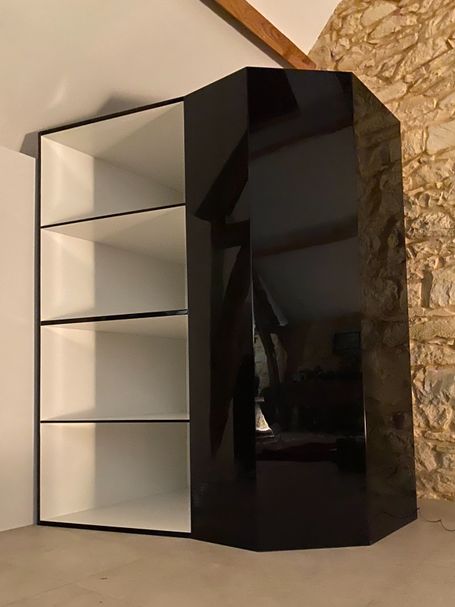

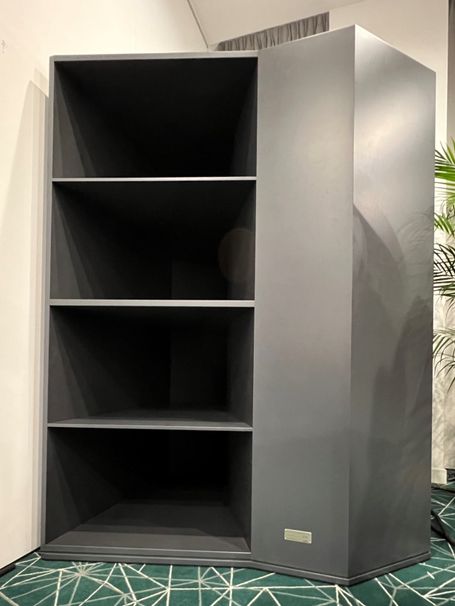

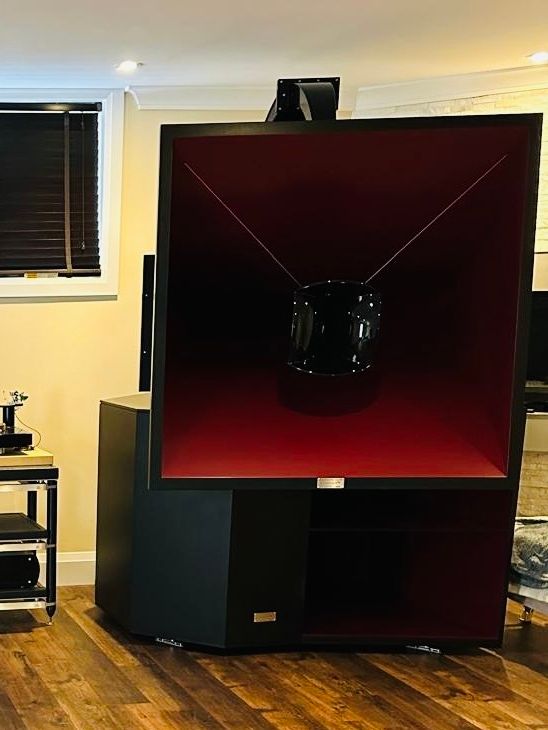

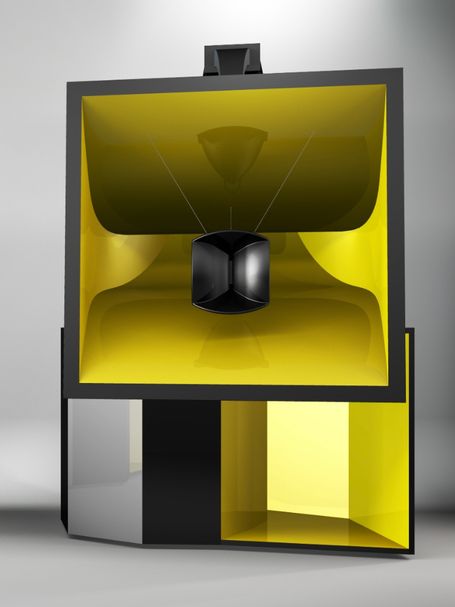

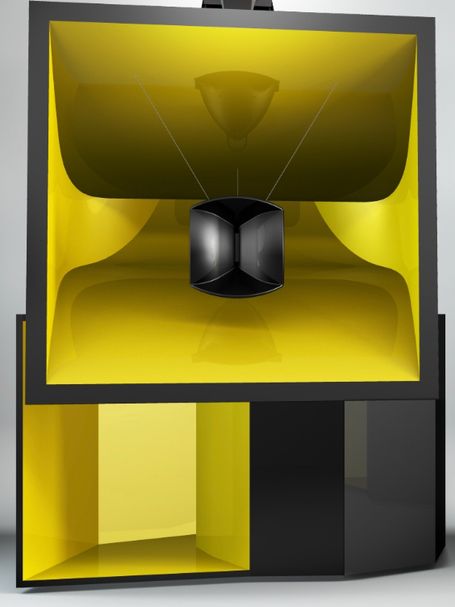

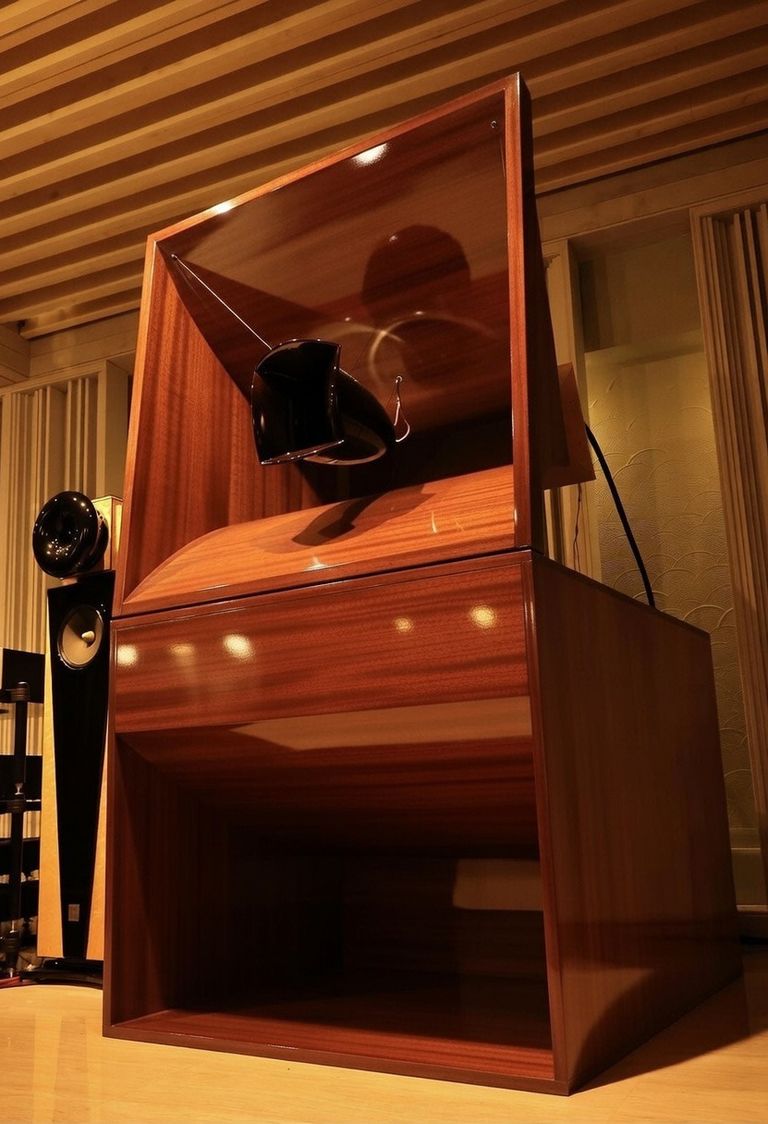

The Oktahorn

The Oktahorn is the worldwide bench-mark for bass horns. A unique horn design, developed for the ones who request the final and ultimate solution.

Two of these horns are enough for room sizes up to 300 square meters.


Specifications



Low cut off                                                         23Hz -3dB at 26Hz

Dimensions                                                        h  201 x w 160 x

                                                                                150cm

horn lenght                                                        300 cm

Directivity around                                            38%

Usable Low Frequency Limit                         23Hz

Recommended Crossover Frequency           250Hz

Weight 380 Kg per Unit

Pair price

34.990.-€



stage 5

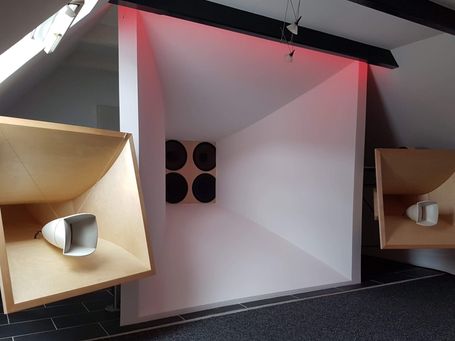

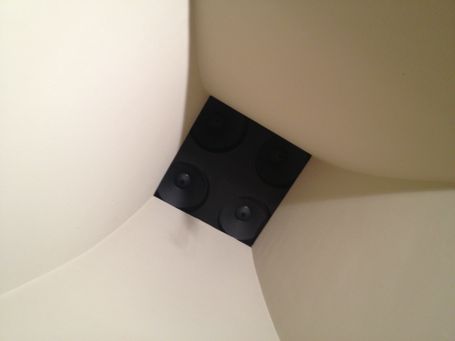

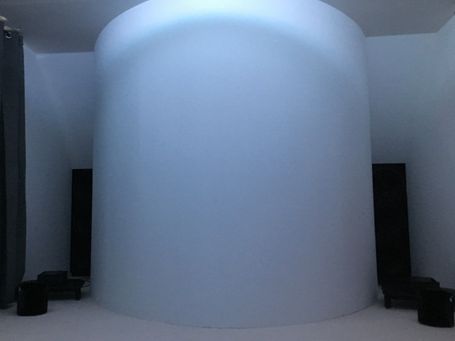

Custom made in wall / room horn solutions and baffles

In room horns using the space of the room to increse the low cut off and the SPL. Usually we develop them as exponentiall horns. Offers and prices on request.

With a horn like this you can reach low frequencys which can simulate earthquakes
